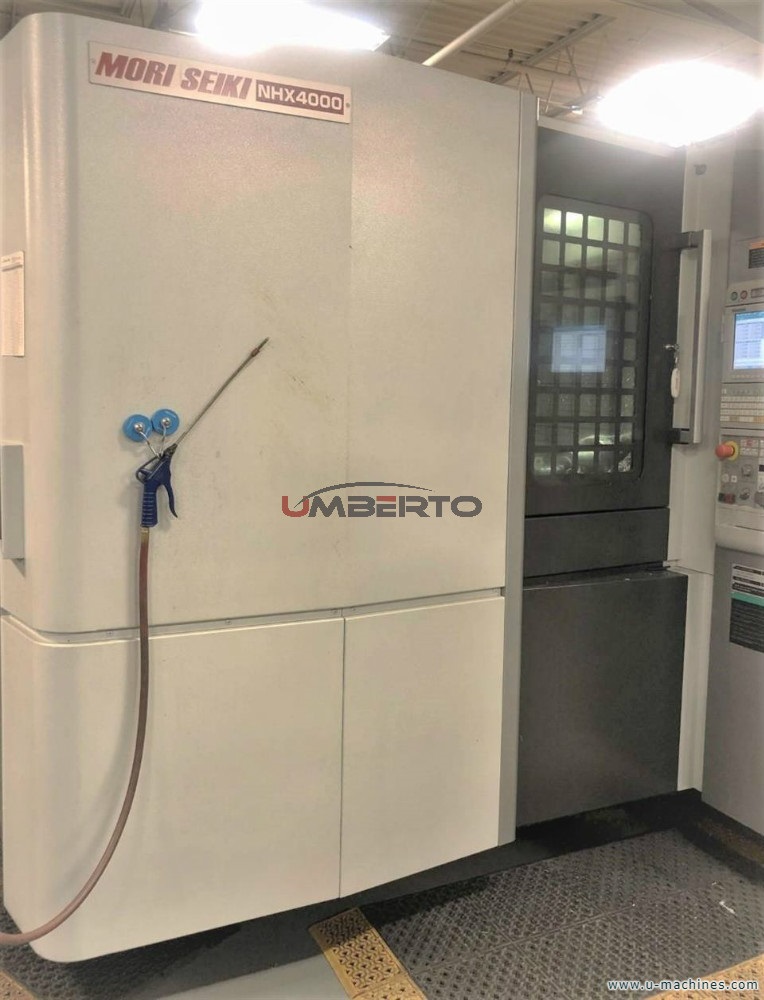

臥加 | MORI SEIKI 森精機(jī) | NHX4000 | 2012年

[貨號(hào)] CU21AA022322

[型號(hào)] NHX4000

[制造商] MORI SEIKI | 森精機(jī)

[年份] 2012年

Specifications:

Pallet Size / Number of Pallets: 15.7" x 15.7" / 2 plts.

Table Indexing: .001 Degree Rotary

Table Load Capacity: 880 lbs.

Pallet Index Time: 1.49 seconds

X-Axis Travel: 22"

Y-Axis Travel: 22"

Z-Axis Travel: 26"

Spindle Nose: CAT #40

Spindle Speed: 12,000 RPM

Spindle Speed Ranges: 1 Range

Spindle Motor: 40 HP

Maximum Part Size (D x H): 24.8" x 35.4"

Tool Magazine Capacity: 60 Position ATC

Maximum Tool Length/Weight: 15.7" / 17.6 lbs.

Rapid Traverse Rates: 2362 IPM

Machine Dimensions: 107.1" x 165.9"

Machine Weight: 20,000 lbs.

Equipped With:

2 Pallet Changer System

Full 4th Axis Rotary Table

Renishaw Spindle Probe

ChipBlaster LV-40 HP Coolant System

Coolant Through the Spindle

Tool Life Management System

Flood Coolant

Chip Conveyor

Rigid Tapping

Helical Interpolation

Part Program Storage Upgrade

Spindle Oil Chiller Unit

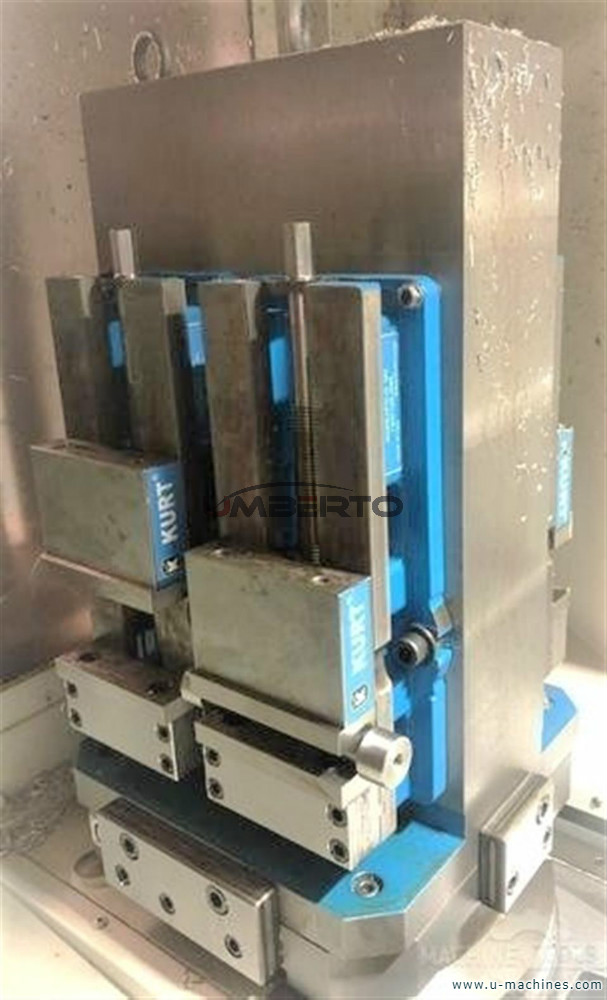

Tombstones

All Available Manuals

Run Hours of 2,715
